OTSUKA OPTICS ENVL-FL dimmable free-arm illuminated magnifier with caster stand

OTSUKA OPTICS ENVL-FL dimmable free-arm illuminated magnifier with caster stand
OTSUKA OPTICS ENVL-FL dimmable free-arm illuminated magnifier with caster stand

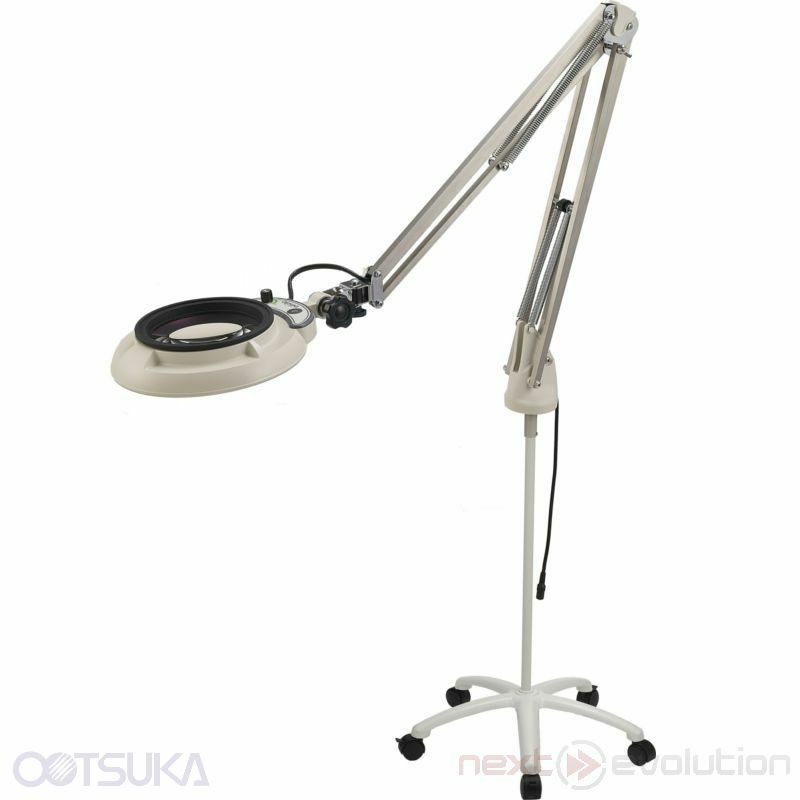

The OTSUKA OPTICS model ENVL-FL is a swing arm magnifier with adjustable brightness, mounted on a roller stand which allows easy movement and relocation within the range of the power cable according to the task. Its design also allows fine visual inspection of larger objects.

The updated LED illumination provides users of the magnifying lamp with realistic, high colour rendering (Ra≧90) and low thermal dissipation. The flat design of the magnifier results in reduced LED light reflection, which improves working efficiency.

The magnifying lamp is easy to operate. The on/off switch is located on top of the magnifier.

The head of the magnifying lamp can be turned horizontally, allowing the magnifying glass to be moved more freely over a wider spectrum from the mounting point.

The redesigned clamp mount is sufficiently stronger and takes up less space than its predecessor - allowing for a durable and stable attachment.

Available for order
Info
Article No.
ENVL-FL
Features of the magnifying lamp
Magnification: 2X-15X
Light source: Premium quality white LED (CRI≧90) with protective cladding for proper light diffusion
Input voltage: 100~240V: 50/60 Hz
Power consumption: 7W
Brightness control (dimming): Yes - 10-100% brightness control range
Weight (Kg): 12.1 kg (without magnifying lens and AC adapter)
AC Adapter: size: 96×44×29 mm (without cables), weight: 0.3 kg (with cables)
Operating temperature range: 5℃~35℃
Dust and water resistance: IP20 (indoor use only)
Features of the magnifying lens
2X 3X 4X 6X 8X 10X 12X 15X
Area magnification: 2X 3X 4X 6X 8X 10X 12X 15X
Line magnification: 1.4X 1.7X 2X 2.4X 2.8X 3.1X 3.4X 3.8X

Magnifier lens diameter (mm):

ø130 ø130 ø130 ø105 ø90 ø90 ø90 ø90
Eyepoint/distance between the eye and lens (mm): 150 150 150 100 105 80 80 65
Working distance / distance between the lens and the object (mm) 160 130 110 82 54 43 35 30
Test area diameter (mm): ø170  ø140 ø120 ø70 ø40 ø40 ø40 ø30
 Lens material: Optical glass
Weight (g): 400 500 700 570 1300 1350 1350 1560
AR coating (anti-reflective) polarised coating: Available for an extra charge
(not included in the basic price)
Not available
