PV10 / Ø10 mm union elbow quick connector from plastic
PV10 / Ø10 mm union elbow quick connector from plastic
640 Ft (Excl. VAT)

PV10 / Ø10 mm union elbow quick connector from plastic

PV10 / Ø10 mm union elbow quick connector from plastic
PV10 / Ø10 mm union elbow quick connector from plastic
PV10 / Ø10 mm union elbow quick connector from plastic
PV10 / Ø10 mm union elbow quick connector from plastic
PV10 / Ø10 mm union elbow quick connector from plastic
PV10 / Ø10 mm union elbow quick connector from plastic
PV10 / Ø10 mm union elbow quick connector from plastic
PV10 / Ø10 mm union elbow quick connector from plastic

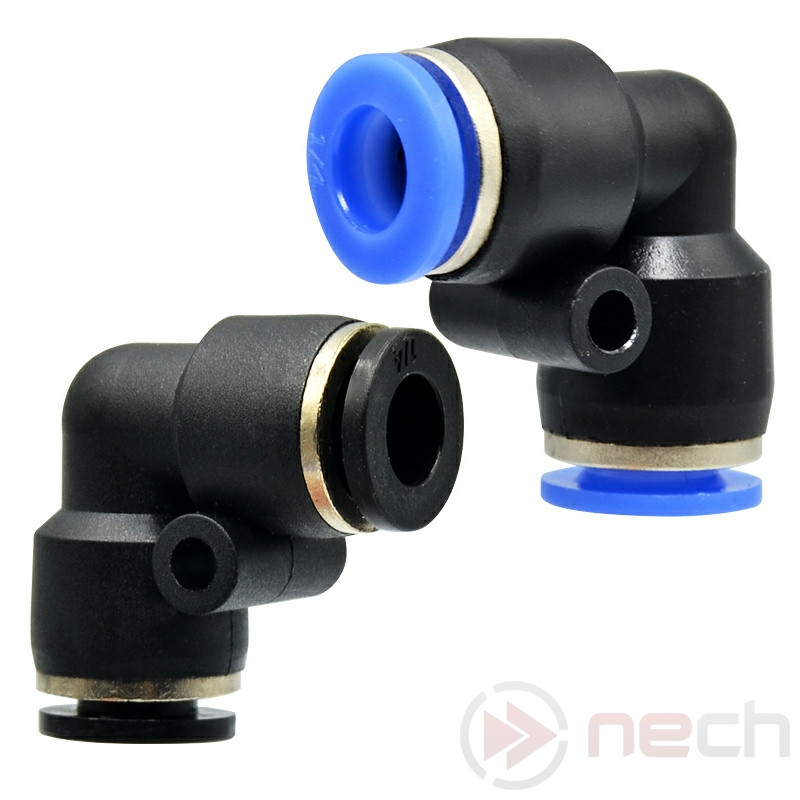

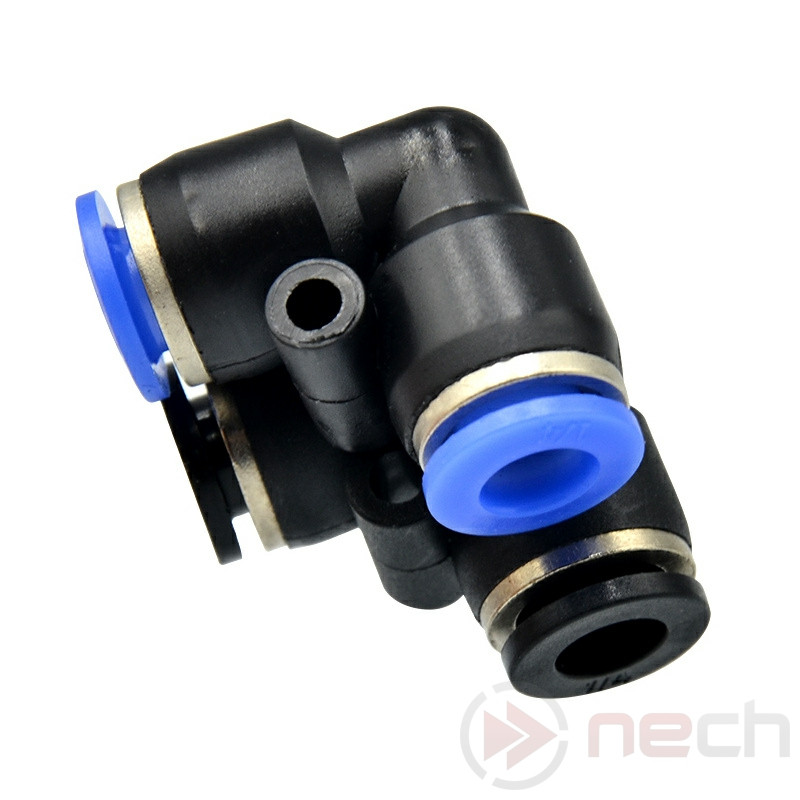

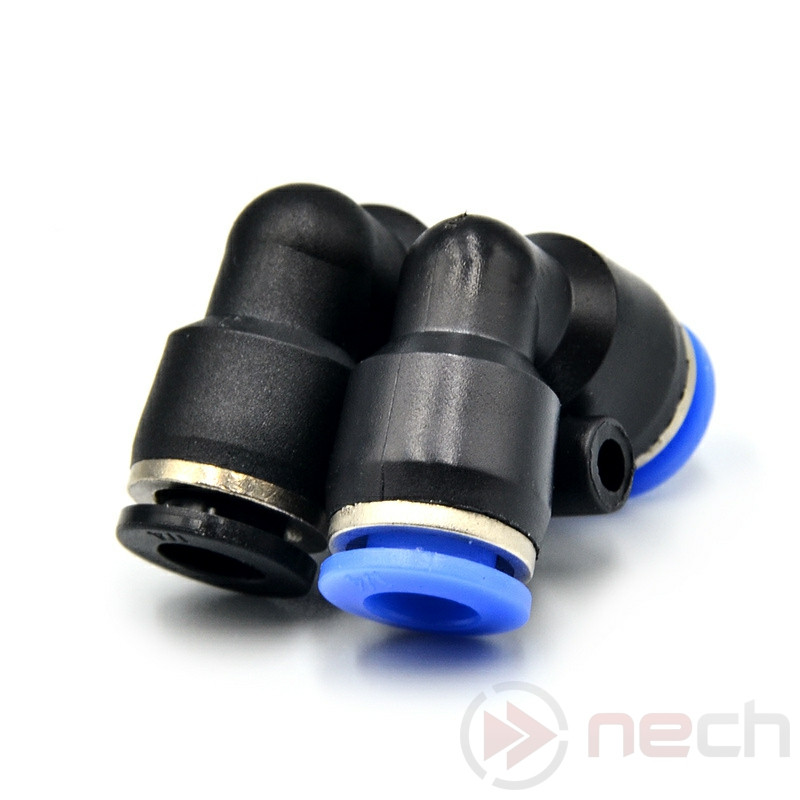

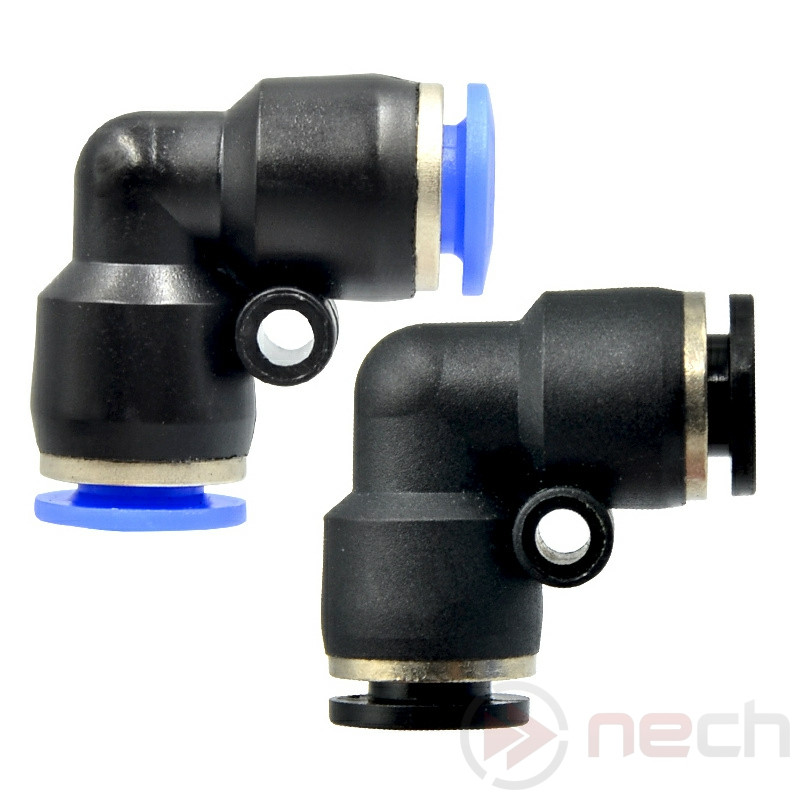

Ø10 mm 90° push-in equal elbow quick connector from plastic.

The PV10 union elbow quick coupling is used to connect two PA, PU, PUR pipes with an outside diameter of 10 mm at right angles. The push-in connector is made of a strong thermoplastic material and a steel pipe clamping sleeve. The PV10 right-angle quick coupling allows a quick and easy way to reconnect and disconnect air ducts without damaging the duct or fitting.

Operating medium: compressed air, vacuum
Maximum pressure: 10 bar
Operating temperature: 0°C to +60°C

In stock
640 Ft (Excl. VAT)
Info
Shape
L - 90° elbow
Material
Plastic
Tube connection
Ø 10 mm
Tube connection (2.)
Ø 10 mm
Article No.
PV10
